Description:
The electronic scoreboard features basic sports information for basketball game.
The scoreboard displays Home and Guest scores to 199,Period to 4,Time to 99:59,Fouls to 9
and shot clock from 0 to 99.When period time is less than one minute,the scoreboard displays time to
1/10 of a second.
1) Scores: 10" -- red
2) Time: 10" -- red
3) Period: red
4) Fouls: 8"-- red
5) Shot clock:10"-- red
6) LED:Super bright LED, >100000hours life
7) Input power: AC100V~240V,50/60Hz
8) Power consumption:< 100W
9) Wireless RF console
10) Product Dimensions:1500*900*75mm
11) Weight:45KG
Characteristics:
1.Easy to operate , in line with people's operating habits.
2.Adopt single-chip to control, software to set up clock, it is with high degree of accuracy.
3.Adopt imported LED with high brightness as display unit, it can be viewed easily.
Functions:
1.Control panel is available in Wireless RF modules for the basketball scoreboard.
2.The basketball scoreboard displays home and guest scores,period,fouls and independent shot clock.
It also features a four digits clock.
3.With the function of exchange field and whistle sound after game time/shot clock runs out.
Specifications:
| Model |
SPY-BS15A |
| Scorer display |
Digits |
| LED Colors |
Red |
| Viewing distance |
100m |
| Usage environment |
Indoor,outdoor |
| Control method |
Wireless RF console |
| Wireless communication distance |
>100m |
| Power consumption |
< 100W |
| Input power |
AC100V~240V,50/60Hz |
| Housing material |
Aluminum |
Advantages:
1.Excellent style model and simple operation
2.Superior design can be used for indoor or outdoor.
3.Wide input power range:AC100-240V,50/60Hz,this scoreboard can be used in any country or region.
Maintenances:
1.Turn off the power when you don't use.
2.Please connect the power cable according right way.
3.Clean with soft cloth.
|
|

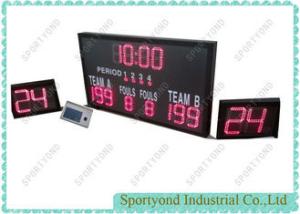

Wireless Control High School Basketball Scores , Digital Led Electronic Scoreboard Images
|
